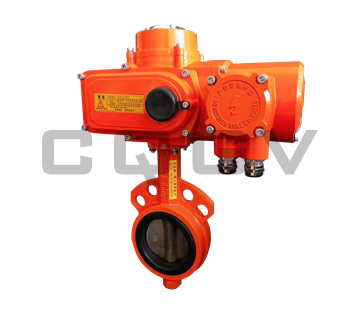

Midline butterfly valve

• Valve Body Material：A216/WCB,CF8/F304,CF3/F304L,
  CF8M/F316,CF3M/F316L
• Valve Caliber：2''~48''
• Pressure Range：Class 150LB
• Temperature Range： 0℃~150℃

Executive Standard

Manufacturing Standards: API 609,MSS SP-68,EN 593
Structure Length: API 609,MSS SP-68,EN 558
Flange End Surface: ASME B16.5,EN 1092,ASME B16.47
Test standard: ISO 5208，API598

Features

The center of the butterfly valve of the midline butterfly valve is in the center line of the valve body and the sealing area of the butterfly plate. When closed, the outer sealing surface of the butterfly plate will squeeze out the synthetic rubber seat and elastically deform on the valve seat. The face ensures the sealing of the butterfly valve.
